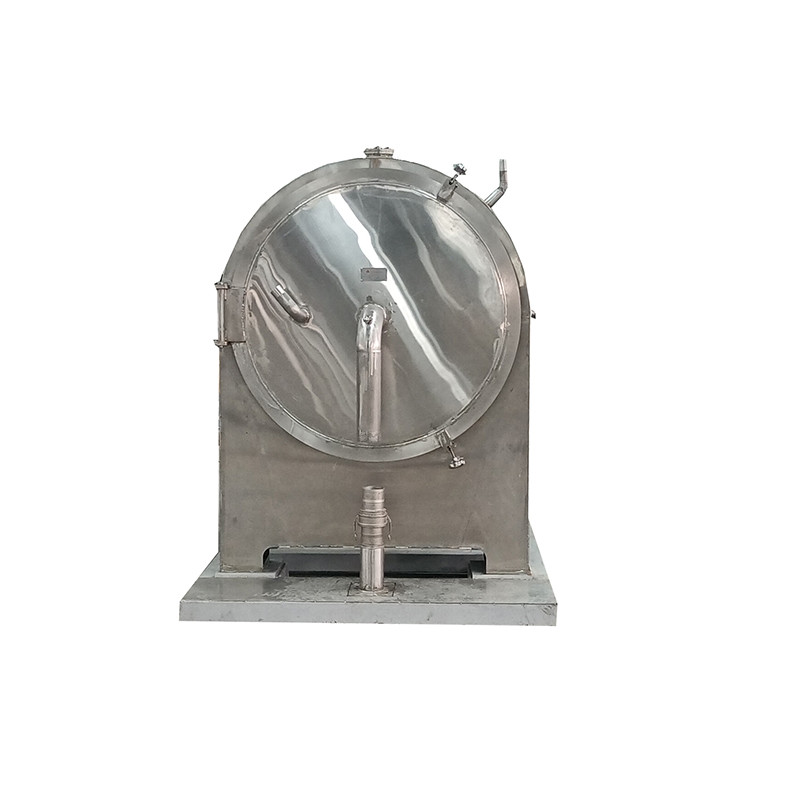

    Multifunction Cassava Starch Centrifuge Sieve Plant Machine Processing Line

    Ask Lasest Price
    Brand Name : JingHua
    Model Number : Centrifuge Sieve
    Price : negotiable
    Payment Terms : L/C, D/P, D/A, Western Union, T/T, MoneyGram
    Supply Ability : 10
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Multifunction Cassava Starch Centrifuge Sieve Plant Machine Processing Line

    Product Description

    Introduction of canna starch slurry fiber separator


    Centrifugal screen is used to separate fine fiber from starch pulp, which is widely used in the processing of potato, cassava, sweet potato, wheat,


    rice, sago and other cereal starch extraction.


    Main technical parameters


    Model

    Basket diameter

    (mm)

    Main shaft speed

    (r/min)

    Working model

    Power

    (Kw)

    Dimension

    (mm)

    Weight

    (t)

    DLS85

    850

    1050

    continuous

    18.5/22/30

    1200x2111x1763

    1.5

    DLS100

    1000

    1050

    continuous

    22/30/37

    1440x2260x1983

    1.8

    DLS120

    1200

    960

    continuous

    30/37/45

    1640x2490x2222

    2.2


    Advantages of centrifuge sieve


    1. Integrating the latest technology with years of experience.


    2. Key components imported from abroad, long service life, low maintenance cost.


    3. All parts in contact with the material are stainless steel, no material pollution.


    4. The sieve basket is calibrated by the domestic authority through dynamic balance.


    5. The sieve is made of laser perforation on a titanium alloy plate.


    6. In order to facilitate the automatic design of the centrifugal screen group, the CIP system and the automatic control of the chain are easy to


    achieve.


    7. Advanced surface treatment technology to ensure good appearance and oil and stain resistance.


    8. The nozzle is strictly tested for pressure and flow.


    9. Large capacity, low power consumption, stable operation, high starch extraction rate, easy installation.


    10. Widely used for starch extraction in starch processing plants.


    Working principle of centrifugal screen


    First, start the machine and let the starch into the bottom of the sieve basket. Then, under the action of centrifugal force and gravity, the slurry


    moves in a complex curve in the direction of a larger particle size and rolls uniformly. In this process, the larger impurities reach the outer edge of


    the sieve basket and gather in the slag collection chamber, while the starch particles smaller than the size of the sieve fall into the starch powder


    collection chamber.
