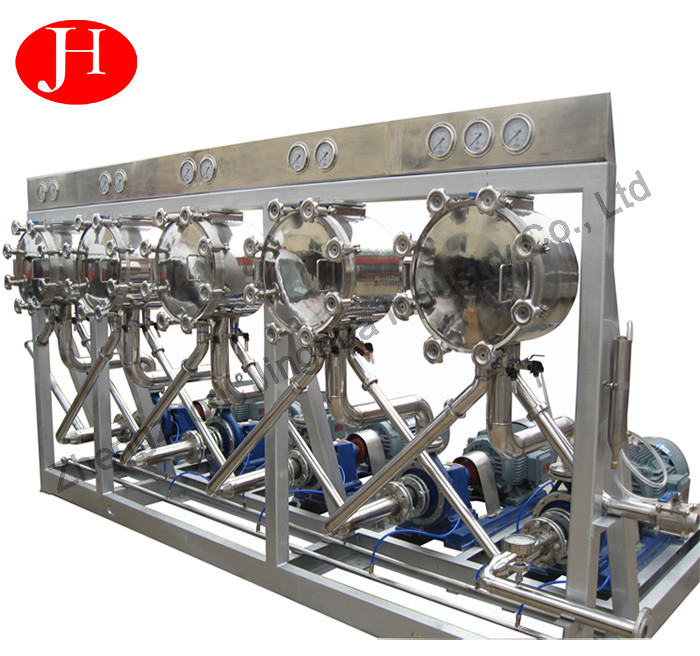

Starch hydrocyclone used in various starch and modified starch
emulsification and degreasing, fine slag separation, protein
separation, washing
and enrichment. Continuous concentration separation, suspension,
clarification, etc., in the food industry.
Compact structure, high precision, good sealing effect, widely used
in potato, cassava, sweet potato, corn, wheat, grain (rice) starch,
modified
starch and so on.
Main technical parameters
Model | XL325 | XL438 | XL516 | XLS426 |
|
Plate quantity | 1 | 1 | 1 | 2 |
Group capacity: 3-12t/h
Power:
7.5-45kw/stage
Total weight: 0.3t/stage |
Cylinder diameter(mm) | 362 | 438 | 516 | 426 |
Cylinder norm(mm) | 10,15 | 10,15 | 10,15 | 10,15 |
Feed Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Inlet Size(mm) | 76 | 89 | 89 | 2* 89 |
Underflow Size(mm) | 48 | 48 | 57 | 76 |
Top flow Size(mm) | 57 | 57 | 76 | 2- 57 |
Advantages of hydro cyclone
1. Fully stainless steel to be sure there is no corrosion.
2. Advanced surface treatment craft. Oil and dirty resisting.
3. Widely used for starch extraction in starch processing plants.
4. Multifunction of concentration, recovery, washing and separation
for hydrocyclone group.
5. Cyclone pipes are made from material of reinforced nylon with
high strength, deter abrasive resistance and excellent separation
result.
6. Hydroclone designing is adopted to get better starch separation
according to the features of different material.
7. Pipeline of hydrocyclone group passes computer optimization
design. Compact and elegant.
Working principle
Starch milk enters the middle cavity of the cylinder body through
the starch pump from the feeding port of the cyclone. Starch paste
enters the
inlet of the cyclone tube and enters the inner part of the cyclone
tube along the tangent direction of the cyclone tube. In the swirl
tube, the material
components rotate according to the spiral line and generate
centrifugal force. And relative density of small proteins and water
centrifugal force is
small, the spiral motion, is reduced to about the lower part of the
cone resistance by bottom LiuKou formed in the reverse direction of
rotation of
the spiral vortex uplink to LiuKou eduction, so as to achieve the
purpose of each one.
