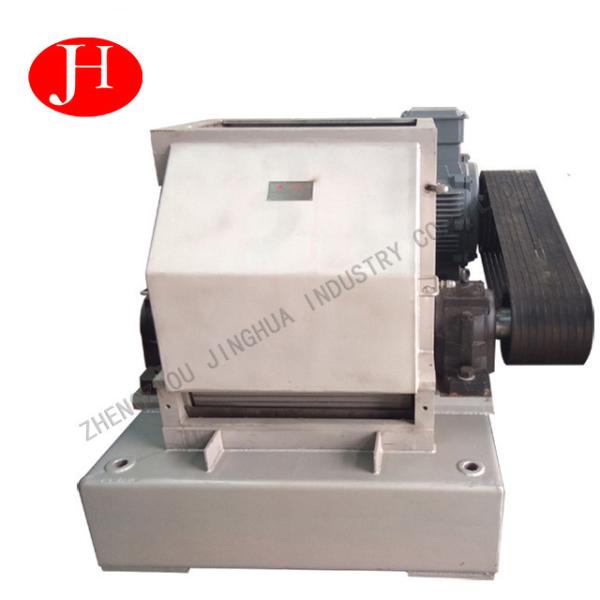

Sweet potato grinding machine introduction
Sweet potato starch is mainly stored in the fleshy part of the
root, the raw material particles are relatively large, the internal
tissue is not easy to
destroy, the use of multiple filing, fully destroy the potato block
structure, can make small starch particles can be smoothly free
from the root,
improve the extraction rate of starch.
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade
stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping
performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance
instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with
longer service life
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by special process,
with higher hardness and wear resistance.
7. Rasping bulk is cast of high-chromium iron, hardness reaching
HRC60, having excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw
blade changing.
Main technical parameters
Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
Drum width(mm) | 350 | 500 | 650 | 700 |
Power(Kw) | 110 | 160 | 200 | 250 |
Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
The working principle of rasper
The material enters into the body of the file mill shell through
the upper entrance, and is broken by the impact, shear and grinding
effect of the
saw blade moving at high speed. The lower part of the rotor is
equipped with a screen screen. The material smaller than the size
of the screen
hole is discharged through the screen plate, and the particles
larger than the size of the screen hole are blocked and remain on
the screen plate
to continue to be hit and grinder by the saw blade.
our service
pre-sale service
1. Introduce the detailed features and applications of the product
to customers.
2. Choose economical and practical machines for customers.
3. Provide the operating data of related machines.
4. Provide audition means for customers.
5. Flow chart and factory design layout.
Sales service
1. Recommend the engineering conditions required for machine
installation.
2. Communicate with customers on the manufacturing progress of the
machine in time.
3. Project planning and design services.
After-sales service
1. Equipment maintenance and personal operation training.
2. Equipment installation and debugging until everything is normal.
3. One year warranty and provide long-term maintenance service and
spare parts.
4. Provide technical support for customers to develop new products.
5. Engineers who can repair machinery overseas.
FAQ
Q1: Is your company a factory or a trading company?
A: Our company is a factory in Henan Province with an export
license, and we have been specialized in export business for more
than 20 years.
Q2. What is your main business?
A: Zhengzhou Jinghua is dedicated to starch processing machinery.
Starch production line equipment, such as: tapioca starch
production line,
tapioca flour production line, potato starch production line, sweet
potato production line, wheat starch, sago production line, Gary
production line
Q3: Where is your factory located? How can I visit there?
A: Our address: the intersection of Zhengyun Road and Guanggu Road,
Guangwu Town, Zhengzhou City, Henan Province, China.
Warmly welcome you to visit us!
Q4: Can your products be assured?
A: Our machines all pass ISO9001:2001 and have CE certificates from
SGS, TUV.
Q5: If we show you our factory layout, can you help us design the
whole production line?
A: Yes, our experienced engineers and technicians can help you
arrange the layout and installation of the whole process line
according to your actual situation;
