Stainless Steel High Quality Rotary Washer Potato Starch Washing
Machine
Product description
Rotary drum washer is applied to wash plantains, sweet potatoes and
etc. Rotary washer is the washing section machine in flour
processing line and it adopts the principle of countercurrent to
clean out mud, sand and small stones effectively.
Advantages of Rotary Washer
1. The whole machine adopts counter-current washing principle, the
cleaning effect is good, can effectively remove mud, remove sand.
2. With reasonable feed structure, the crushing of material is less
than 1%, which is more conducive to the extraction of starch..
3. The roller is made of high quality steel plate by CNC punching
machine, durable.
The Working Principle of Rotary Washer
The washing machine is designed with counter-current washing, that
is, the cleaning water enters the washing machine from the material
outlet. The material enters into the rotating drum and is cleaned
in the tumbling collision. Meanwhile, the skin of the material is
effectively removed. The cleaned sediment skin falls between the
drum and the inner wall of the water tank through the mesh, moves
forward under the push of the blades, and is discharged through the
overflow tank.
Main Technical Parameter of Rotary Washer
Model
| Drum diameter (mm) | Drum length (mm) | Capacity(t/h) | Power(Kw) | Dimension(mm) | Weight(kg) |
| DQXJ190x450 | Φ1905 | 4520 | 20-25 | 18.5 | 5400x2290x2170 | 5200 |
| DQXJ190x490 | Φ1905 | 4920 | 30-35 | 22 | 5930x2290x2170 | 5730 |
| DQXJ190x490 | Φ1905 | 4955 | 35-50 | 30 | 6110x2340x2170 | 6000 |

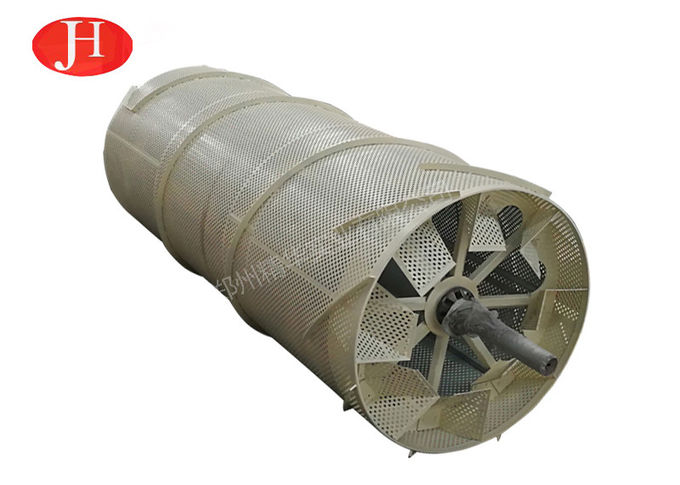

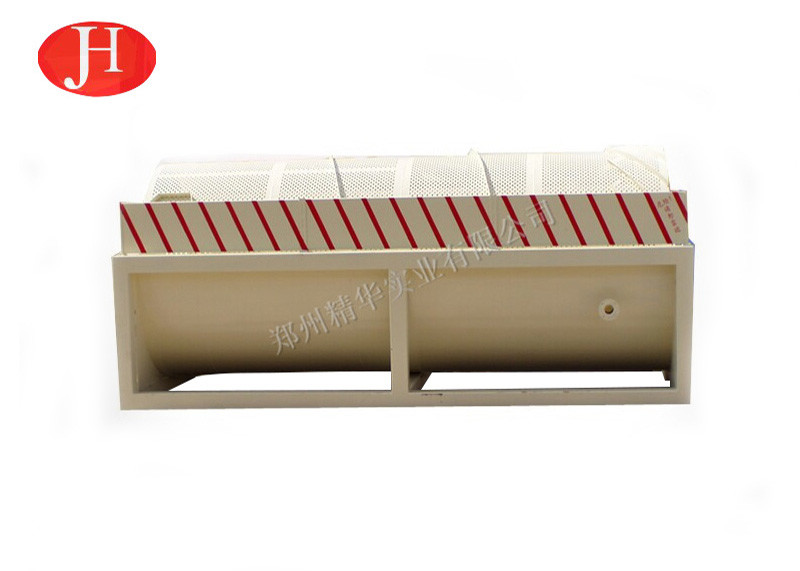

Product Show
Packing & Shipping
Packing:Customize the wooden case according to the size of the
product,Each container can hold 4-6 pieces of products.
Delivery:14days after receiving pre-payment (on time according to
contract strictly)
