Airflow Dryer Cassava Potato Sweet Potato Starch Dryer Making
Machine Starch Production Line
Product Description
Airflow dryer is widely used for powdery drying, and the humidity
is controlled between 14% and 20%.
Main Features of airflow dryer
1. The whole system adopts automatic control.
2. Through measuring on feeding material moisture,or temperature
difference between inlet and outlet,the feeding quantity and inlet
steam volume can be automatic adjusted,thus the water content of
product could reach the technology requirement.
3. This kind airflow dryer is not only suitable to all kinds potato
kinds starch to be dried,but also adaptable to the drying of corn
starch and wheat starch.

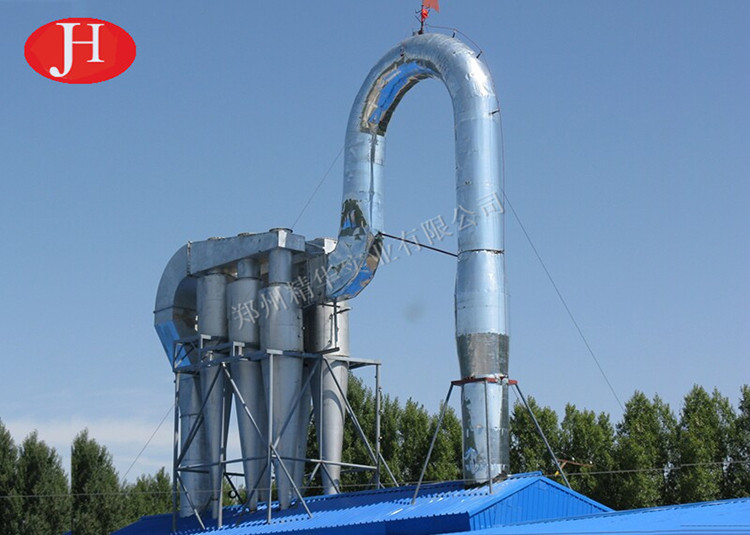

The working principle of airflow dryer
The cold air enters the radiator plate through the air filter, and
the hot air flow after heating enters the dry air pipe. Meanwhile,
the wet material enters the hopper of the feeding unit from the wet
starch inlet, and is transported into the hoist by the feeding
winch.The hoist rotates at high speed to drop the wet material into
the dry duct, so that the wet material is suspended in the high
speed hot air stream and heat is exchanged.After the material is
dried, it enters the cyclone separator with the airflow, and the
separated dry material is discharged by wind winding, and the
finished product is screened and packed into the warehouse. And the
separated exhaust gas, by the exhaust fan into the exhaust gas
duct, into the atmosphere.
Main Technical Parameters
| Model | DG-3.2 | DG-4.0 | DG-6.0 | DG-10.0 |
| Output(t/h) | 3.2 | 4.0 | 6.0 | 10.0 |
| Power capacity(Kw) | 97 | 139 | 166 | 269 |
| Moisture of wet starch(%) | ≤40 | ≤40 | ≤40 | ≤40 |
| Moisture of dry starch(%) | 12-14 | 12-14 | 12-14 | 12-14 |
Product Show
Company Information
Jinghua company is an engineering and technical company
specializing in starch engineering design, equipment manufacturing,
engineering installation and debugging, technical personnel
training and other work. Has two modern large factory, engineering
and technical personnel more than 30 people, can provide
installation services overseas .Company for China starch industry
association executive director units, executive director of the
association of Chinese cassava starch industry unit.
Our Factory
Our Office
Our Warehouse

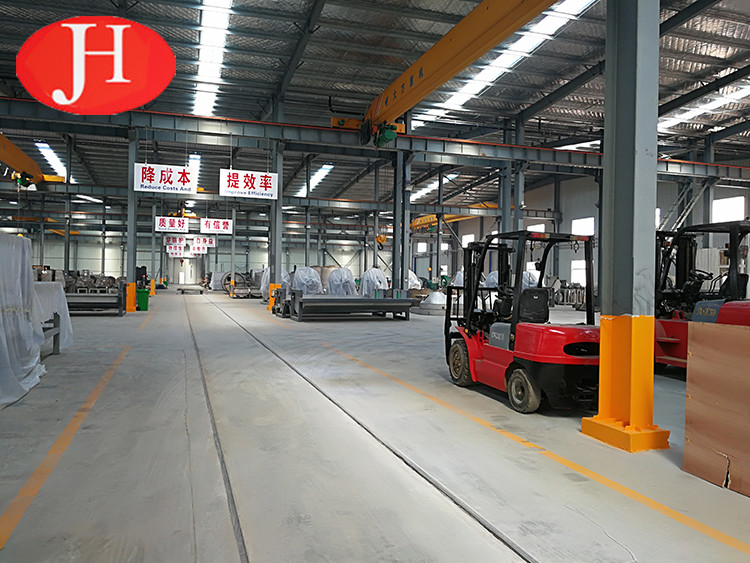

Our Workshop
