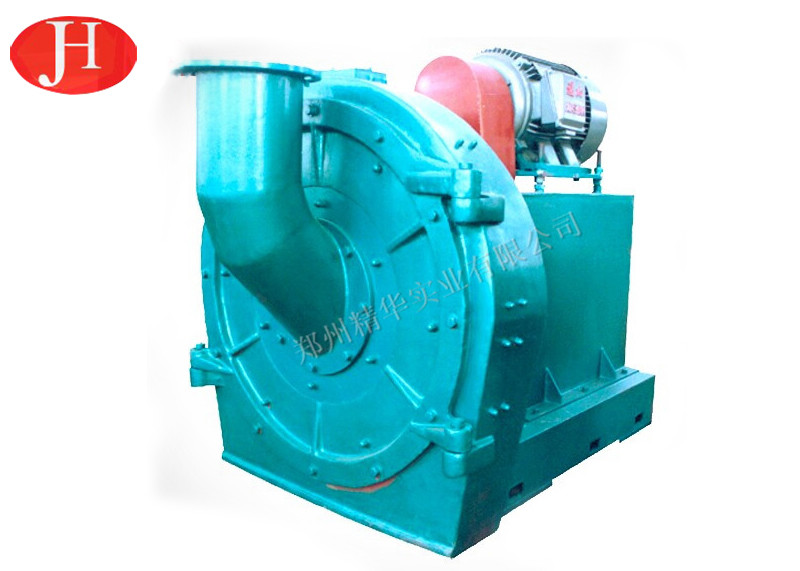

Convex-Teeth Mill corn starch making machine alcohol production
equipment
Product Description
Corn is broken to obtain starch, through fermentation and other
steps can be made into alcohol, convex-teeth mill is a production
of corn starch equipment.This mill is mainly applied to coarse
crashing of steeped corn, facilitate the separation of germ
adequately and get the highest germ extraction.This is
professionequipment in corn starch processing plant.
Main Features of convex-teeth mill
1. Convex-teeth mill is a kind of coarse crushing equipment used
for wet starch production.
2. All parts in connection with material is made of stainless steel
to prevent material pollution.
3. Long service life and easy to matintain.
4. 1 year warranty and lifelong maintenance
Main Technical Parameters
| Type | First Stage Crushing |
| Capacity(t/h) | Integrated corn grains(%) | Rate of germ strip(%) | Corn crashing extent(Pcs.) |
| MT1200 | 20~25 | 1 | 85 | 4~6 |
| MT980 | 15~18 | 1 | 85 | 4~6 |
| MT800 | 4~8 | 1 | 85 | 4~6 |
| MT600 | 2~3 | 1 | 85 | 4~6 |
| Model | Rotator diameter | Rotator Speed | Dimension(mm) | Motor | Weight |
| MT1200 | 1200mm | 880 r/min | 2600X1500X1800 | 55Kw | 3000 kg |
| MT980 | 980mm | 922r/min | 2060X1276X1400 | 45Kw | 2460 kg |
| MT800 | 800mm | 970r/min | 2510X1100X1125 | 37Kw | 1500 kg |
| MT600 | 600mm | 970r/min | 1810X740X720 | 18.5Kw | 800 kg |
Our Service
Pre-sale service
1. Accept customer consultation and customize products according to
customer requirements.
2. Provide customers with product process, equipment parameters and
processes, and train personnel according to customer requirements.
Sale service
1. The company sent technical personnel to the scen of the on-the
-spot guidance equipment installation,debugging and training
operators.
2. If there is any problem during the installation, please contact
the responsible person in time. We will solve the problem in time
to ensure the installation progress.
After-sale service
1. Provide telephone and video support. If the customer has any
problems or abnormal devices in use, you can contact us by phone.
We will help the customer solve the problems by phone or video.
2. If the phone or video doesn't work, the company will send
technicians to the scene to fix the problem.
3. Products purchased in our company, we provide one-year warranty
and lifelong maintenance service.
