Large Capacity Potato Crusher Cutter Making Machine Potato Starch
Production Line
Description of potato crusher
Zhengzhou Jinghua Industry crusher is newly designed with compact
structure, easy disassembly and low maintenance cost. The machine
is widely used for cracking big materials. The raw material is
usually fresh cassava tube, fresh sweet potato and after crushing
you can get the finished product with a 20-30mm size. It is a
precrushing.
Features of crusher
1. Fully stainless steel to be sure there is no corrosion.
2. We have as long as 15 years’ experience in development and
research of starch processing subject.
3. This machine has features of low energy consumption, high
capacity, fine particles and easy installation, easy maintenance.
4. It consists of cover, case body, machine seat, main shaft and so
on.
5. It is mainly used for crashing cassava, sweet potato etc.
Working principle of crusher
The main working part of the crusher is a rotary table with a
blade. The rotary table is composed of a spindle and a rotary
table.The motor drives the rotary table to rotate at a medium speed
in the slicing chamber, and the material enters from the upper
feeding port,the upper part of the rotary knife is sheared by the
rotary blade and is discharged at the lower part of the rotary
knife.
Main technical parameters
| Model | Diameter of rotor (mm) | Speed of rotor (r/min) | Blade Number | Rotor length (mm) | Power (Kw) | Dimension (mm) | Weight (Kg) | Capacity (t/h) |
| DPS5050 | Φ480 | 1200 | 9 | 550 | 7.5/11 | 1030x1250x665 | 650 | 10-15 |
| DPS5076 | Φ480 | 1200 | 11 | 760 | 11/15 | 1250x1300x600 | 750 | 15-30 |
| DPS50100 | Φ480 | 1200 | 15 | 1000 | 18.5/22 | 1530x1250x665 | 900 | 30-50 |
| DPS60100 | Φ580 | 1200 | 15 | 1000 | 30/37 | 1530x1400x765 | 1100 | 60-80 |
Our Service
Pre-sale service
1.Accept customer consultation and customize products according to
customer requirements.
2.Provide customers with product process, equipment parameters and
processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scen of the on-the
-spot guidance equipment installation,debugging and training
operators.
2.If there is any problem during the installation, please contact
the responsible person in time. We will solve the problem in time
to ensure the installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any
problems or abnormal devices in use, you can contact us by phone.
We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send
technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty
and lifelong maintenance service.
Company Information
Jinghua company is an engineering and technical company
specializing in starch engineering design, equipment manufacturing,
engineering installation and debugging, technical personnel
training and other work. Has two modern large factory, engineering
and technical personnel more than 30 people, can provide
installation services overseas .Company for China starch industry
association executive director units, executive director of the
association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific
works, 6 national standards and 30 academic papers, across a
country: "ten five" to "thirteen, five" national key r&d
projects and provincial major research project over 10, with more
than 10 national patents, won awards at all levels more than 20.
Has participated in more than 80 domestic and foreign starch
engineering design work, its advanced processing technology and
technology has reached the world's leading level.
Our Factory
Our Office

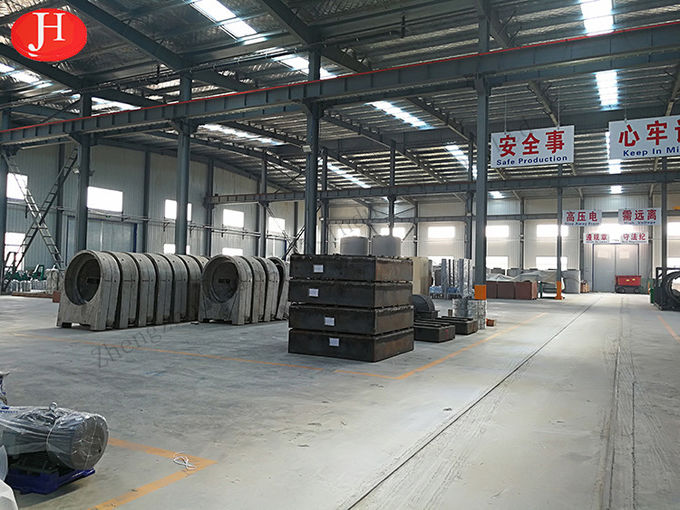

Our Workshop
Our Workshop
