Four Bin Full Closed Flour Sifter Fiber Separator Cassava Flour
Processing Equipment

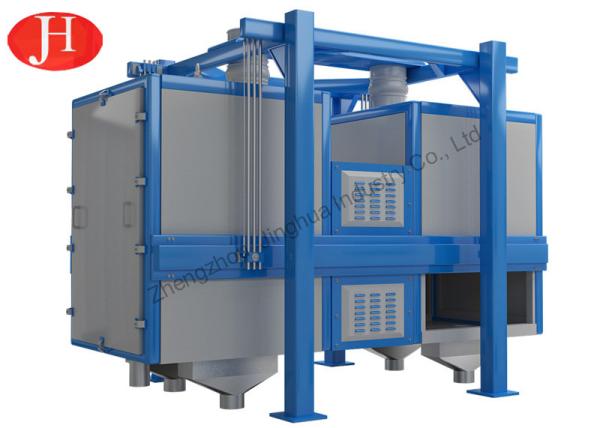

Description of cassava flour sifter machine
MFDC check sifter utilized as a final check (security) sifter
before flour is sent to flour storage or packing machine to ensure
bran particles or particles bigger that flour particles are
removed. Machine can also be used for corn, feed and rice
industries.
Advantages of flour sifter
1. Long sieving roadSmall occupying space
2. High efficiency and large capacity
3. Energy saving and stable operation;Easy maintenance
4. Shifter screen is varied 40-120 mesh according to different
material.
5. Shifter screen material is stainless steel
6. Shifter frame can be made of carbon steel or stainless steel
Main technical parameters
| Model | Bin (Piece) | Number of sieves (piece) | Capacity (t/h) | Diameter (mm) | Power (Kw) | Weight (kg) | Dimension (mm) |
| GDSF2*10*100 | 2 | 10-12 | 8-10 | Φ45-55 | 2.2 | 1200-1500 | 2530x1717x2270 |
| GDSF2*10*83 | 2 | 8-12 | 5-7 | Φ45-55 | 1.5 | 730-815 | 2120x1440x2120 |
| GDSF1*10*83 | 4.5 | 2-3 | 3-4 | Φ40 | 0.75 | 600 | 1380x1280x1910 |
| GDSF1*10*100 | 6.4 | 3-4 | 4-5 | Φ40 | 1.5 | 750 | 1620x1620x1995 |
| GDSF1*10*120 | 7.6 | 4-5 | 5-6 | Φ40 | 1.5 | 950 | 1890x1890x2400 |
Working principle
The machine is composed of two main parts: the mild steel frame
mounted with clamps for the flexible suspension rods, floor plates
for mounting and the mild steel box section for the sieve frames
with upper clamping by means of a metal frame and clamping pressure
micrometric screws.
The drive unit with counter balance weight, with motor, pulleys,
v-belt is mounted under the cabinet box section, adjustable to suit
different applications. Material is fed into the top and by the
machines circular motion, the fine material moves through the sieve
mesh and is discharged out each sieve side to outlets, while the
course material over tails and sent to separate outlets.
Our Service
Pre-sale service
1.Accept customer consultation and customize products according to
customer requirements.
2.Provide customers with product process, equipment parameters and
processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scene of the on-the
-spot guidance equipment installation,debugging and training
operators.
2.If there is any problem during the installation, please contact
the responsible person in time. We will solve the problem in time
to ensure the installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any
problems or abnormal devices in use, you can contact us by phone.
We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send
technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty
and lifelong maintenance service.
Company Information
Zhengzhou Jinghua company is an engineering and technical company
specializing in starch engineering design, equipment manufacturing,
engineering installation and debugging, technical personnel

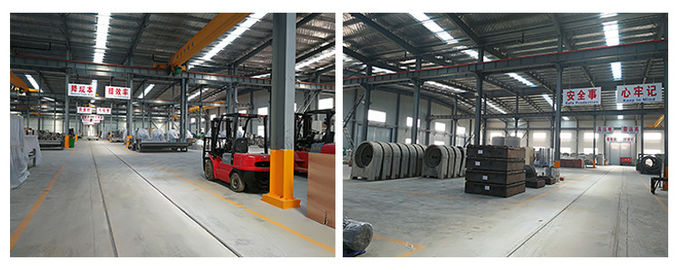

training and other work. Has two modern large factory,Can ensure
the processing and delivery cycle,engineering and technical
personnel more than 30 people, can provide installation services
overseas and custom product for you.Our company has undertaken
national and provincial scientific research projects.,with more
than 30 invention patents, various honor certificate more than
20.Can provide high quality products for you.
