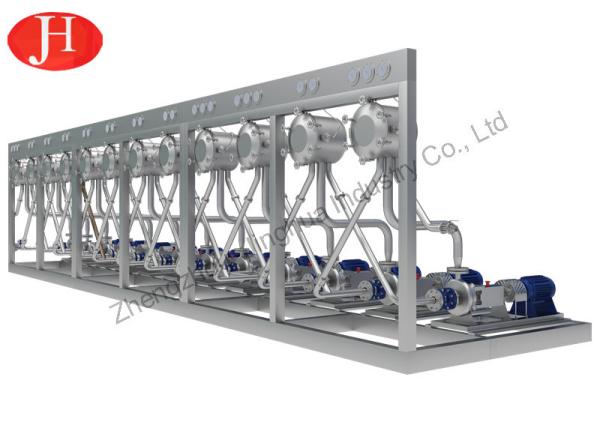

New Condition Hydro Cyclone Starch Milk Dehydrator Potato Starch
Making Machine
Description of potato starch milk dehydrator machine
The cyclone is mainly used for the dehydration, washing and
concentration of starch pulp such as wheat, potato, sweet potato
and cassava. Widely used in sweet potato starch, cassava starch,
potato starch, corn starch, wheat starch, pea starch, konjac starch
and other starch production line.
Advantages of hydro cyclone
1. Fully stainless steel to be sure there is no corrosion.
2. Widely used for starch extraction in starch processing plants.
3. Cyclone pipes are made from material of reinforced nylon with
high strength, deter abrasive resistance and excellent separation
result.
4. Hydroclone designing is adopted to get better starch separation
according to the features of different material.
5. Pipeline of hydrocyclone group passes computer optimization
design. Compact and elegant.
6. Special sealing design, friendly operation.
Main technical parameters
| Model | XL325 | XL438 | XL516 | XLS426 | |
| Plate quantity | 1 | 1 | 1 | 2 | Group capacity: 3-12t/h
Power:
7.5-45kw/stage
Total weight: 0.3t/stage |
| Cylinder diameter(mm) | 362 | 438 | 516 | 426 |
| Cylinder norm(mm) | 10,15 | 10,15 | 10,15 | 10,15 |
| Feed Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Inlet Size(mm) | 76 | 89 | 89 | 2* 89 |
| Underflow Size(mm) | 48 | 48 | 57 | 76 |
| Top flow Size(mm) | 57 | 57 | 76 | 2- 57 |
Working principle
Starch milk enters the middle cavity of the cylinder body through
the starch pump from the feeding port of the cyclone. Starch paste
enters the inlet of the cyclone tube and enters the inner part of
the cyclone tube along the tangent direction of the cyclone tube.
In the swirl tube, the material components rotate according to the
spiral line and generate centrifugal force. And relative density of
small proteins and water centrifugal force is small, the spiral
motion, is reduced to about the lower part of the cone resistance
by bottom LiuKou formed in the reverse direction of rotation of the
spiral vortex uplink to LiuKou eduction, so as to achieve the
purpose of each one.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size
of the product.
Delivery: 14 days after receiving pre-payment (on time according to
contract strictly).
Our Advantage
Zhengzhou Jinghua company is an engineering and technical company
specializing in starch engineering design, equipment manufacturing,
engineering installation and debugging, technical personnel
training and other work. Has two modern large factory,Can ensure
the processing and delivery cycle,engineering and technical
personnel more than 30 people, can provide installation services
overseas and custom product for you.Our company has undertaken
national and provincial scientific research projects.,with more
than 30 invention patents, various honor certificate more than
20.Can provide high quality products for you.
